This article explains the various types of dialogs available for Eclipse plug-in development. It covers the native SWT dialogs, the standard JFace dialogs and how to build custom dialogs based on JFace.

1. Dialogs in Eclipse

Eclipse allows you to use dialogs to prompt the user for additional information or provide the user with feedback. The Eclipse platform offers several standard dialogs via SWT and JFace.

2. SWT dialogs

SWT provides an API to use the native dialogs of the OS platform.

The default SWT dialogs are listed below.

  • ColorDialog: for selecting a color

  • DirectoryDialog: for selecting a directory

  • FileDialog: for selecting a file

  • FontDialog: for selecting a font

  • MessageBox: for opening a message dialog

  • PrintDialog: for selecting a printer and configuring a print job

Because these dialogs are native, their look and feel depends on the OS platform and cannot be customized beyond the options offered by the SWT API.

The following code demonstrates the usage of the MessageBox class to open a message dialog.

// create a dialog with ok and cancel buttons and a question icon
MessageBox dialog = new MessageBox(shell, SWT.ICON_QUESTION | SWT.OK | SWT.CANCEL);
dialog.setText("My info");
dialog.setMessage("Do you really want to do this?");

// open dialog and await user selection
int returnCode = dialog.open();

3. JFace dialogs

JFace contains several frequently used dialogs, which are not based on native dialogs, and a framework for building custom dialogs.

Even though JFace dialogs are not native, they follow the native platform semantics for things like the button order.

3.1. Using the builder API for creating message dialogs

The PlainMessageDialog class provides a builder API to create a message dialog. The image() method adds a standard icon, for example, the information icon.

PlainMessageDialog.getBuilder(shell, "Copied to clipboard")
        .message("Selected task copied to clipboard. Paste in any editor")
        .image(SWT.ICON_INFORMATION)
        .buttonLabels(List.of("Close"))
        .build()
        .open();

3.2. Using the static helper methods of the JFace MessageDialog class

The MessageDialog class provides static methods to open commonly used dialogs, for example, an information or a warning dialog. The following code demonstrates the usage of these static methods.

// standard message dialogs
MessageDialog.openConfirm(shell, "Confirm", "Please confirm");
MessageDialog.openError(shell, "Error", "Error occurred");
MessageDialog.openInformation(shell, "Info", "Info for you");
MessageDialog.openQuestion(shell, "Question", "Really, really?");
MessageDialog.openWarning(shell, "Warning", "I am warning you!");

The resulting dialogs are depicted in the following screenshots.

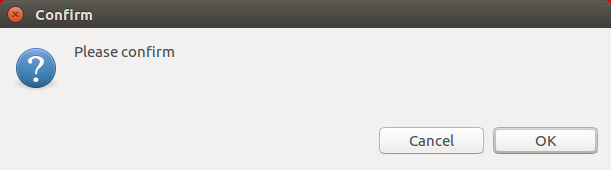

Confirm dialog with the buttons Cancel and OK

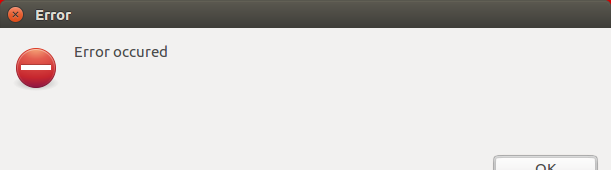

Error dialog with an error icon and an OK button
Info dialog with an information icon and an OK button

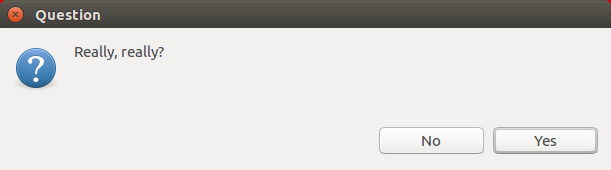

Question dialog with the buttons No and Yes
Warning dialog with a warning icon and an OK button

Several of these static methods return the user selection, for example, the openConfirm() method returns true if the user selected the OK button. The following example code prompts the user for confirmation and handles the result.

boolean result = MessageDialog.openConfirm(shell, "Confirm", "Please confirm");

if (result) {
    // OK button selected
} else {
    // Cancel button selected
}

3.3. Using the JFace MessageDialog class directly

The MessageDialog class allows the customization of the buttons in the dialog.

The following code demonstrates its usage.

// customized MessageDialog with configured buttons
var dialog = new MessageDialog(shell, "My Title", null, "My message",
        MessageDialog.ERROR, 0, "First", "Second", "Third");
// index of the selected button, or -1 if the dialog was closed
int result = dialog.open();
System.out.println(result);

If you open this dialog, it looks similar to the following screenshot.

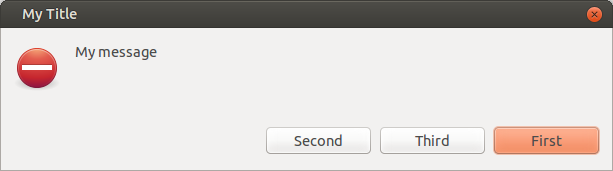

Custom message dialog with the buttons Second, Third and First
The display of the default button is platform-dependent, the above screenshot shows it on Linux.

3.4. ErrorDialog

The ErrorDialog class displays one or more errors to the user. If an error contains additional detailed information, a button is automatically added, which shows or hides this information.

The following snippet shows a handler class that uses this dialog.

package com.vogella.tasks.ui.handlers;

import java.util.Arrays;

import org.eclipse.core.runtime.IStatus;
import org.eclipse.core.runtime.MultiStatus;
import org.eclipse.core.runtime.Status;
import org.eclipse.e4.core.di.annotations.Execute;
import org.eclipse.jface.dialogs.ErrorDialog;
import org.eclipse.swt.widgets.Shell;

public class ShowErrorDialogHandler {
    private static final String PLUGIN_ID = "com.vogella.tasks.ui";

    @Execute
    public void execute(Shell shell) {
        // create an exception on purpose to demonstrate the ErrorDialog
        try {
            String s = null;
            System.out.println(s.length());
        } catch (NullPointerException e) {
            MultiStatus status = createMultiStatus(e);
            ErrorDialog.openError(shell, "Error", "This is an error", status);
        }
    }

    // one child status per stack trace element, shown in the details area
    private static MultiStatus createMultiStatus(Throwable t) {
        IStatus[] children = Arrays.stream(t.getStackTrace())
                .map(element -> Status.error(element.toString()))
                .toArray(IStatus[]::new);
        return new MultiStatus(PLUGIN_ID, IStatus.ERROR, children, t.toString(), t);
    }
}

If you trigger this handler, the dialog shows the exception messages and allows access to details. The detail page contains the stack trace, as depicted in the following screenshot.

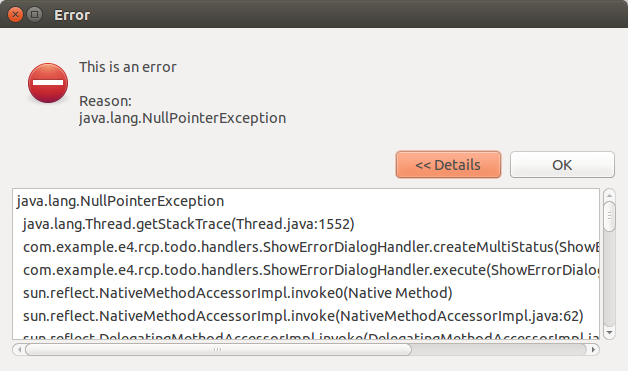

Error dialog with the expanded stack trace details

3.5. Creating a custom dialog

The org.eclipse.jface.dialogs.Dialog class can be extended to create your own dialog implementation. This class creates an area in which you can place controls, and it adds an OK and a Cancel button by default. Override the createButtonsForButtonBar() method to display custom buttons.

Your class overrides the createDialogArea() method to add its controls. The super.createDialogArea(parent) call creates a Composite to which you can add your controls. Set a GridData object as the layout data of these controls. This is demonstrated by the following example code.

package com.vogella.tasks.ui.dialogs;

import org.eclipse.jface.dialogs.Dialog;
import org.eclipse.swt.SWT;
import org.eclipse.swt.events.SelectionListener;
import org.eclipse.swt.graphics.Point;
import org.eclipse.swt.layout.GridData;
import org.eclipse.swt.widgets.Button;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.Control;
import org.eclipse.swt.widgets.Shell;

public class MyDialog extends Dialog {

    public MyDialog(Shell parentShell) {
        super(parentShell);
    }

    @Override
    protected Control createDialogArea(Composite parent) {
        Composite container = (Composite) super.createDialogArea(parent);
        Button button = new Button(container, SWT.PUSH);
        button.setLayoutData(new GridData(SWT.BEGINNING, SWT.CENTER, false, false));
        button.setText("Press me");
        button.addSelectionListener(SelectionListener.widgetSelectedAdapter(e -> System.out.println("Pressed")));

        return container;
    }

    // overriding this method allows you to set the title of the dialog
    @Override
    protected void configureShell(Shell newShell) {
        super.configureShell(newShell);
        newShell.setText("Selection dialog");
    }

    @Override
    protected Point getInitialSize() {
        return new Point(450, 300);
    }
}

TIP: The example code demonstrates how to set the title of your custom dialog via the configureShell() method.

If you open this dialog, it looks similar to the following screenshot.

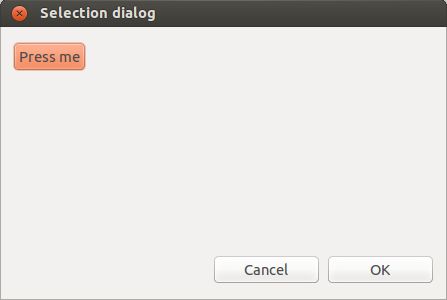

Custom JFace dialog with a Press me button

3.6. TitleAreaDialog

You can implement your custom dialog based on the TitleAreaDialog class. TitleAreaDialog reserves space for providing user feedback. You can set the text in this space via the setMessage() and setErrorMessage() methods.

The following example shows a custom defined TitleAreaDialog.

package com.vogella.tasks.ui.dialogs;

import org.eclipse.jface.dialogs.IMessageProvider;
import org.eclipse.jface.dialogs.TitleAreaDialog;
import org.eclipse.swt.SWT;
import org.eclipse.swt.layout.GridData;
import org.eclipse.swt.layout.GridLayout;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.Control;
import org.eclipse.swt.widgets.Label;
import org.eclipse.swt.widgets.Shell;
import org.eclipse.swt.widgets.Text;

public class MyTitleAreaDialog extends TitleAreaDialog {

    private Text txtFirstName;
    private Text txtLastName;

    private String firstName;
    private String lastName;

    public MyTitleAreaDialog(Shell parentShell) {
        super(parentShell);
    }

    @Override
    public void create() {
        super.create();
        setTitle("This is my first custom dialog");
        setMessage("This is a TitleAreaDialog", IMessageProvider.INFORMATION);
    }

    @Override
    protected Control createDialogArea(Composite parent) {
        Composite area = (Composite) super.createDialogArea(parent);
        Composite container = new Composite(area, SWT.NONE);
        container.setLayoutData(new GridData(SWT.FILL, SWT.FILL, true, true));
        container.setLayout(new GridLayout(2, false));

        createFirstName(container);
        createLastName(container);

        return area;
    }

    private void createFirstName(Composite container) {
        Label lblFirstName = new Label(container, SWT.NONE);
        lblFirstName.setText("First Name");

        txtFirstName = new Text(container, SWT.BORDER);
        txtFirstName.setLayoutData(new GridData(SWT.FILL, SWT.CENTER, true, false));
    }

    private void createLastName(Composite container) {
        Label lblLastName = new Label(container, SWT.NONE);
        lblLastName.setText("Last Name");

        txtLastName = new Text(container, SWT.BORDER);
        txtLastName.setLayoutData(new GridData(SWT.FILL, SWT.CENTER, true, false));
    }

    @Override
    protected boolean isResizable() {
        return true;
    }

    // save the content of the text fields, because they get disposed
    // as soon as the dialog closes
    private void saveInput() {
        firstName = txtFirstName.getText();
        lastName = txtLastName.getText();
    }

    @Override
    protected void okPressed() {
        saveInput();
        super.okPressed();
    }

    public String getFirstName() {
        return firstName;
    }

    public String getLastName() {
        return lastName;
    }
}

This dialog is depicted in the following screenshot.

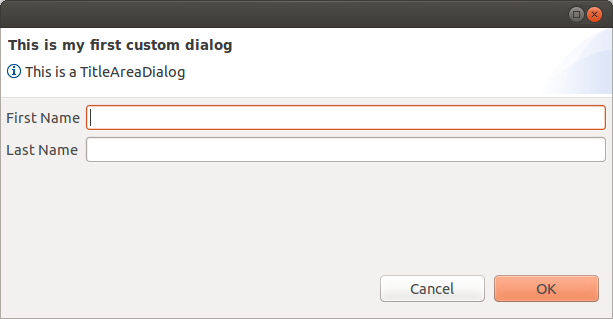

Custom TitleAreaDialog with First Name and Last Name fields

The following code snippet opens this dialog, for example, from a handler.

// more imports
import org.eclipse.jface.window.Window;
import org.eclipse.swt.SWT;
import org.eclipse.swt.widgets.Display;
import org.eclipse.swt.widgets.Shell;


var dialog = new MyTitleAreaDialog(shell);
// just to demonstrate how to set the title background color
dialog.setTitleAreaColor(Display.getDefault().getSystemColor(SWT.COLOR_DARK_GRAY).getRGB());

// now open the dialog
dialog.create();
if (dialog.open() == Window.OK) {
    System.out.println(dialog.getFirstName());
    System.out.println(dialog.getLastName());
}

NOTE: The title area image and color can be set via the setTitleImage() and setTitleAreaColor() methods, respectively.

3.7. Creating a non-modal / non-blocking dialog

Use the setShellStyle() method with the SWT.MODELESS style and call setBlockOnOpen(false) to create a non-modal dialog.

package com.vogella.tasks.ui.dialogs;

import org.eclipse.jface.dialogs.Dialog;
import org.eclipse.swt.SWT;
import org.eclipse.swt.graphics.Point;
import org.eclipse.swt.layout.GridData;
import org.eclipse.swt.widgets.Button;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.Control;
import org.eclipse.swt.widgets.Shell;

public class MyNonModalDialog extends Dialog {

    public MyNonModalDialog(Shell parentShell) {
        super(parentShell);
        setShellStyle(SWT.CLOSE | SWT.MODELESS | SWT.BORDER | SWT.TITLE);
        setBlockOnOpen(false);
    }

    @Override
    protected Control createDialogArea(Composite parent) {
        Composite container = (Composite) super.createDialogArea(parent);
        Button button = new Button(container, SWT.PUSH);
        button.setLayoutData(new GridData(SWT.BEGINNING, SWT.CENTER, false, false));
        button.setText("Press");
        return container;
    }

    @Override
    protected Point getInitialSize() {
        return new Point(450, 300);
    }
}

3.8. Showing notifications

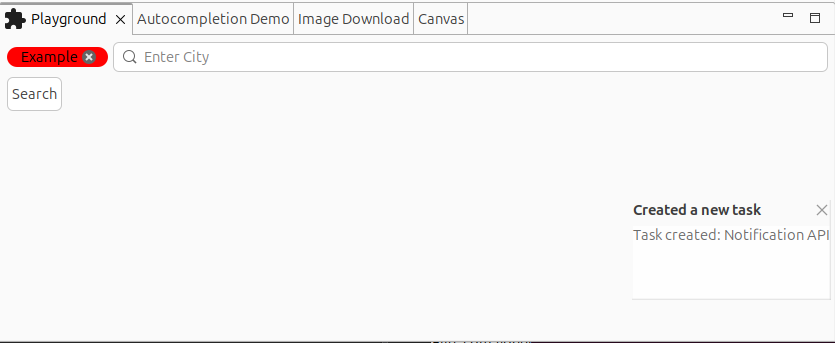

A notification informs the user without blocking the application. The NotificationPopup class from the org.eclipse.jface.notifications plug-in shows a small popup in the bottom right corner, which fades out after a delay. Create it with its builder, NotificationPopup.Builder, which you get via NotificationPopup.forShell() or NotificationPopup.forDisplay(). forShell() places the popup in the corner of the given shell, forDisplay() in the corner of the primary monitor. The builder sets the title via title(), the title icon via titleImage(), the content via either text() or content(), the time until the popup closes via delay() and whether it fades in via fadeIn(). open() builds and opens the popup, build() only creates it, so build().open() is equivalent to open(). Add org.eclipse.jface.notifications as a dependency to the manifest of your plug-in to use it.

// a plain text notification which closes itself after 3 seconds
NotificationPopup.forShell(shell)
        .title("Task saved", true) (1)
        .text("Your changes have been saved.")
        .delay(3000)
        .open();

// a notification with custom content
NotificationPopup.forShell(shell)
        .title("Update available", true)
        .titleImage(updateIcon)
        .fadeIn(true)
        .content(parent -> { (2)
            WidgetFactory.label(SWT.WRAP).text("A new version of the application is available.").create(parent);
            WidgetFactory.button(SWT.PUSH).text("Restart now")
                    .onSelect(_ -> workbench.restart())
                    .create(parent);
            return parent;
        })
        .open();
1 The second parameter adds a close button to the title.
2 The content() method creates arbitrary widgets in the popup instead of a single text label. The popup keeps its default margins, so the function only creates the widgets.

In this example, shell is the parent shell of the popup and workbench is the IWorkbench. In a handler, inject them as parameters of the @Execute method, the shell via Shell shell and the workbench via org.eclipse.e4.ui.workbench.IWorkbench workbench. The example does not show how the updateIcon image is created. Prefer an image owned by a long-lived ImageRegistry or ResourceManager, which disposes it together with itself, and do not dispose such an image yourself. open() returns while the popup is still visible, so if you create the image yourself, dispose it only after the popup has closed.

4. Selection dialogs

The Eclipse workbench provides several standard selection dialogs in the org.eclipse.ui.dialogs package of the org.eclipse.ui.workbench plug-in. If you develop an Eclipse 4 application which does not use the workbench layer, you can copy their implementation into one of your plug-ins and adjust them as needed.

The most commonly used selection dialogs are:

  • ElementListSelectionDialog - for selecting elements from a filterable list

  • ListDialog - for selecting an element from a list based on a content and label provider

  • ElementTreeSelectionDialog - for selecting elements from a tree

  • CheckedTreeSelectionDialog - for selecting multiple elements from a tree via checkboxes

  • FilteredItemsSelectionDialog - for selecting elements from a large, filterable set of items, similar to the Open Type dialog of the Eclipse IDE

For example, ElementListSelectionDialog allows you to select elements from a list where the dialog provides a filter for the elements.

ElementListSelectionDialog dialog =
    new ElementListSelectionDialog(shell, new LabelProvider());
dialog.setElements(new String[] { "Linux", "Mac", "Windows" });
dialog.setTitle("Which operating system are you using");
// user pressed cancel
if (dialog.open() != Window.OK) {
        return false;
}
Object[] result = dialog.getResult();

5. Prerequisites for this tutorial

This tutorial assumes that you have basic understanding of development for the Eclipse platform. Please see Eclipse RCP Tutorial or Eclipse plug-in Tutorial if you need any basic information.

6. Exercise: Use SWT dialogs

The following exercise demonstrates how to use the SWT dialogs.

Create a new Eclipse plug-in project named de.vogella.rcp.dialogs.swt with one part. Create the following class.

package de.vogella.rcp.dialogs.swt;

import org.eclipse.swt.SWT;
import org.eclipse.swt.events.SelectionAdapter;
import org.eclipse.swt.events.SelectionEvent;
import org.eclipse.swt.graphics.FontData;
import org.eclipse.swt.graphics.RGB;
import org.eclipse.swt.widgets.Button;
import org.eclipse.swt.widgets.ColorDialog;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.DirectoryDialog;
import org.eclipse.swt.widgets.FileDialog;
import org.eclipse.swt.widgets.FontDialog;
import org.eclipse.swt.widgets.MessageBox;
import org.eclipse.swt.widgets.Shell;

public class MyComposite extends Composite {

    public MyComposite(final Composite parent, int style) {
        super(parent, style);
        Button button = new Button(parent, SWT.PUSH);
        button.setText("Press me");
        button.addSelectionListener(new SelectionAdapter() {
            @Override
            public void widgetSelected(SelectionEvent e) {
                Shell shell = parent.getShell();
                openDialogs(shell);
            }
        });

    }

    private void openDialogs(Shell shell) {
        // File standard dialog
        FileDialog fileDialog = new FileDialog(shell);
        // Set the text
        fileDialog.setText("Select File");
        // Set filter on .txt files
        fileDialog.setFilterExtensions(new String[] { "*.txt" });
        // Put in a readable name for the filter
        fileDialog.setFilterNames(new String[] { "Textfiles(*.txt)" });
        // Open Dialog and save result of selection
        String selected = fileDialog.open();
        System.out.println(selected);

        // Directly standard selection
        DirectoryDialog dirDialog = new DirectoryDialog(shell);
        dirDialog.setText("Select your home directory");
        String selectedDir = dirDialog.open();
        System.out.println(selectedDir);

        // Select Font
        FontDialog fontDialog = new FontDialog(shell);
        fontDialog.setText("Select your favorite font");
        FontData selectedFont = fontDialog.open();
        System.out.println(selectedFont);

        // Select Color
        ColorDialog colorDialog = new ColorDialog(shell);
        colorDialog.setText("Select your favorite color");
        RGB selectedColor = colorDialog.open();
        System.out.println(selectedColor);

        // Message
        MessageBox messageDialog = new MessageBox(shell, SWT.ERROR);
        messageDialog.setText("Evil Error has happend");
        messageDialog.setMessage("This is fatal!!!");
        int returnCode = messageDialog.open();
        System.out.println(returnCode);

        // Message with ok and cancel button and info icon
        messageDialog = new MessageBox(shell,
                SWT.ICON_QUESTION |
                SWT.OK
                | SWT.CANCEL);
        messageDialog.setText("My info");
        messageDialog.setMessage("Do it.");
        returnCode = messageDialog.open();
        System.out.println(returnCode);
    }

}

In the method which creates your user interface, add this composite to your part as demonstrated in the following code.

new MyComposite(parent, SWT.NONE);

Run the application. If you select your button the dialogs will be displayed.

7. Optional exercise: Add a notification to the application

Use the JFace snippets from https://github.com/eclipse-platform/eclipse.platform.ui/blob/master/docs/JFaceSnippets.md#notification to learn how to add a notification to your application.

For example, add a notification after a new task has been created with the NewTaskHandler.

For this, add org.eclipse.jface.notifications as a plug-in dependency to the manifest of the com.vogella.tasks.ui plug-in.

Add the following code to the NewTaskHandler class.

// new import
import org.eclipse.jface.notifications.NotificationPopup;

// more code

// add this code at the end of the execute method
NotificationPopup.forShell(shell)
        .title("Created a new task", true)
        .delay(2000)
        .text("Task created: " + task.getSummary())
        .build()
        .open();
Notification popup Created a new task in the application window

8. Exercise: Create a password dialog

Create a new class called PasswordDialog that extends Dialog in your com.vogella.tasks.ui plug-in. This dialog allows users to enter a user name and a password.

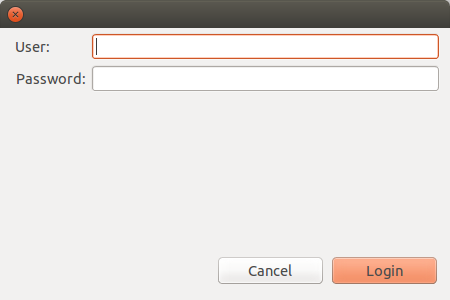

Enter user credentials
package com.vogella.tasks.ui.dialogs;

import org.eclipse.jface.dialogs.Dialog;
import org.eclipse.jface.dialogs.IDialogConstants;
import org.eclipse.swt.SWT;
import org.eclipse.swt.graphics.Point;
import org.eclipse.swt.layout.GridData;
import org.eclipse.swt.layout.GridLayout;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.Control;
import org.eclipse.swt.widgets.Label;
import org.eclipse.swt.widgets.Shell;
import org.eclipse.swt.widgets.Text;

public class PasswordDialog extends Dialog {
    private Text txtUser;
    private Text txtPassword;
    private String user = "";
    private String password = "";

    public PasswordDialog(Shell parentShell) {
        super(parentShell);
    }

    @Override
    protected Control createDialogArea(Composite parent) {
        Composite container = (Composite) super.createDialogArea(parent);
        GridLayout layout = new GridLayout(2, false);
        layout.marginRight = 5;
        layout.marginLeft = 10;
        container.setLayout(layout);

        Label lblUser = new Label(container, SWT.NONE);
        lblUser.setText("User:");

        txtUser = new Text(container, SWT.BORDER);
        txtUser.setLayoutData(new GridData(SWT.FILL, SWT.CENTER, true, false, 1, 1));
        txtUser.setText(user);
        txtUser.addModifyListener(e -> {
            Text textWidget = (Text) e.getSource();
            String userText = textWidget.getText();
            user = userText;
        });

        Label lblPassword = new Label(container, SWT.NONE);
        GridData gridDataPasswordLabel = new GridData(SWT.LEFT, SWT.CENTER, false, false);
        gridDataPasswordLabel.horizontalIndent = 1;
        lblPassword.setLayoutData(gridDataPasswordLabel);
        lblPassword.setText("Password:");

        txtPassword = new Text(container, SWT.BORDER | SWT.PASSWORD);
        txtPassword.setLayoutData(new GridData(SWT.FILL, SWT.CENTER, true, false));
        txtPassword.setText(password);
        txtPassword.addModifyListener(e -> {
            Text textWidget = (Text) e.getSource();
            String passwordText = textWidget.getText();
            password = passwordText;
        });
        return container;
    }

    // override method to use "Login" as label for the OK button
    @Override
    protected void createButtonsForButtonBar(Composite parent) {
        createButton(parent, IDialogConstants.OK_ID, "Login", true);
        createButton(parent, IDialogConstants.CANCEL_ID, IDialogConstants.CANCEL_LABEL, false);
    }

    @Override
    protected Point getInitialSize() {
        return new Point(450, 300);
    }

    @Override
    protected void okPressed() {
        user = txtUser.getText();
        password = txtPassword.getText();
        super.okPressed();
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }
}

To use the dialog in your application, create a new menu entry (and a command with a handler) that allows you to open this dialog. Name the handler class EnterCredentialsHandler.

package com.vogella.tasks.ui.handlers;

import org.eclipse.e4.core.di.annotations.Execute;
import org.eclipse.jface.window.Window;
import org.eclipse.swt.widgets.Shell;

import com.vogella.tasks.ui.dialogs.PasswordDialog;

public class EnterCredentialsHandler {

    @Execute
    public void execute(Shell shell) {
        PasswordDialog dialog = new PasswordDialog(shell);

        // get the new values from the dialog
        if (dialog.open() == Window.OK) {
            String user = dialog.getUser();
            String pw = dialog.getPassword();
        }
    }
}
Ensure that your handler links to the EnterCredentialsHandler class and not to the PasswordDialog.
Home Tutorials Training Consulting Books Company Contact us


Get more...
